Hinge Pin Mirror for 1935-52 Ford Trucks and Cars

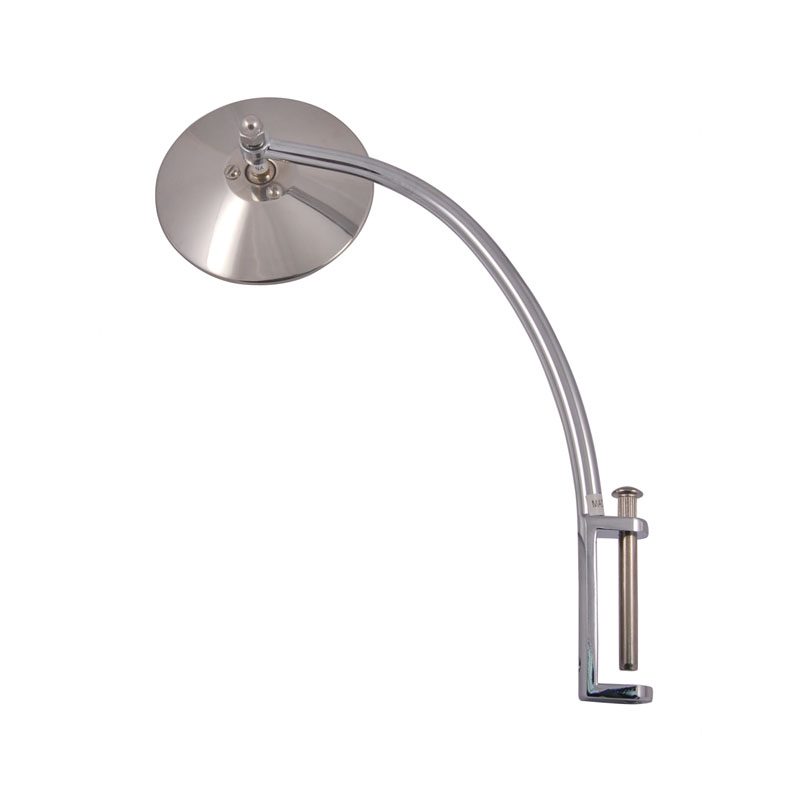

Hinge Pin Mirror - 1948-52 Ford Truck, 1935-40 Ford Car

48-18403

:

: 0

:

$44.95

EA.

Features:

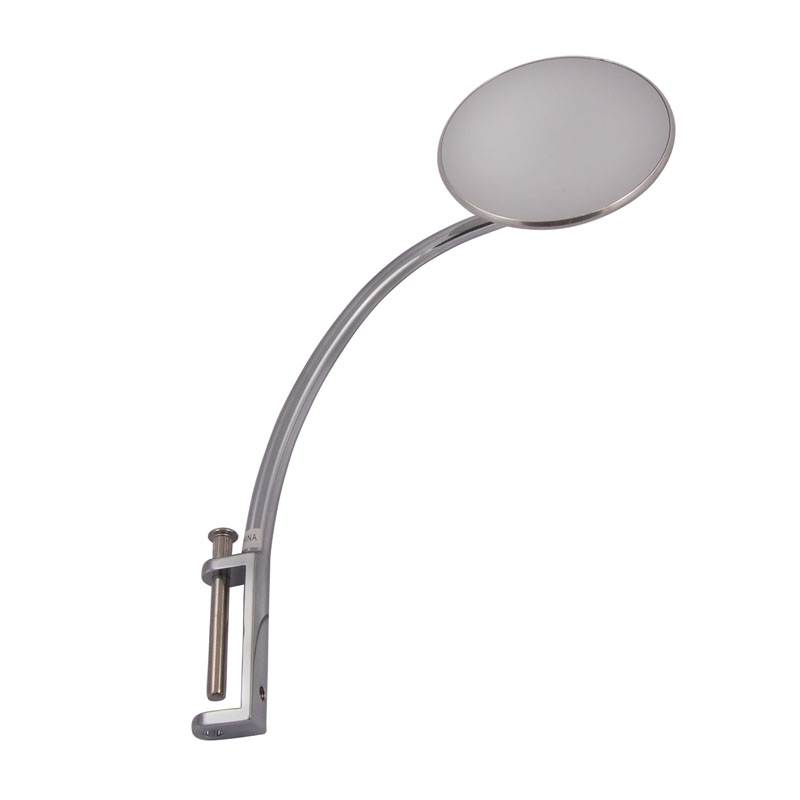

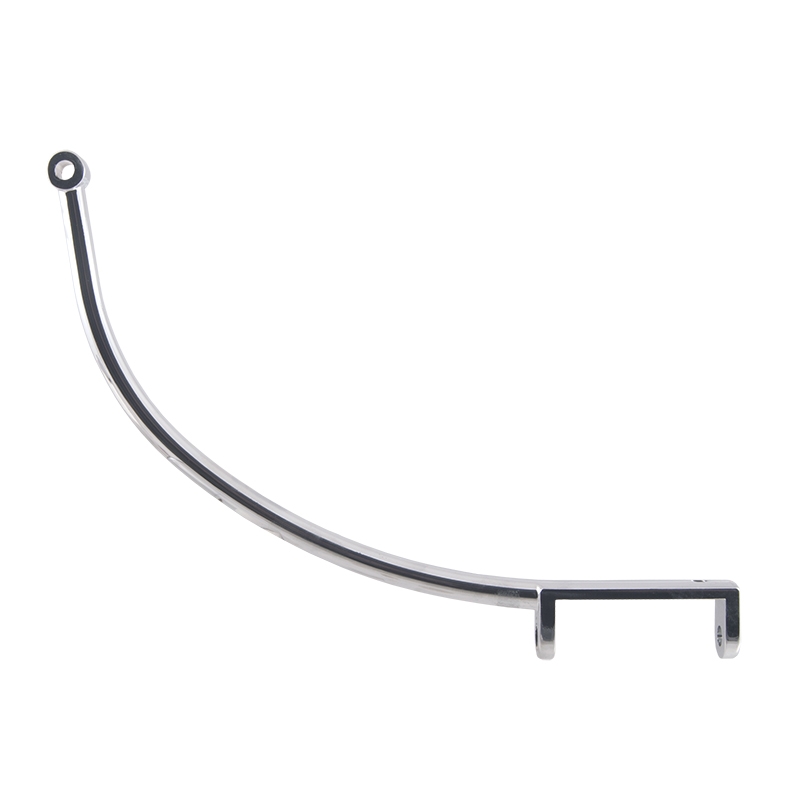

• Die Cast Metal Chrome Plated Arm

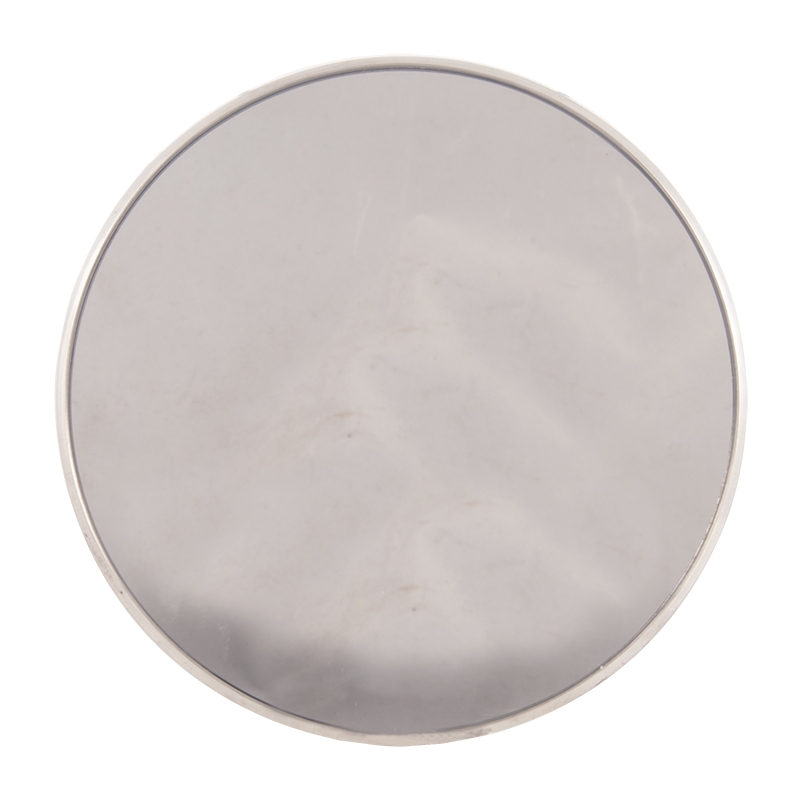

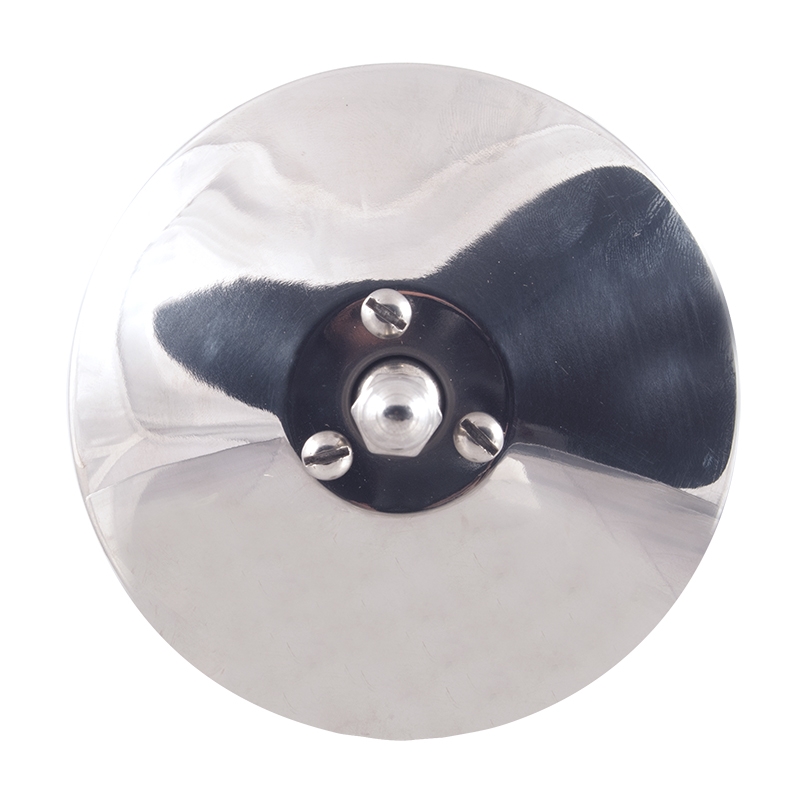

• Polished Stainless Steel Mirror Head

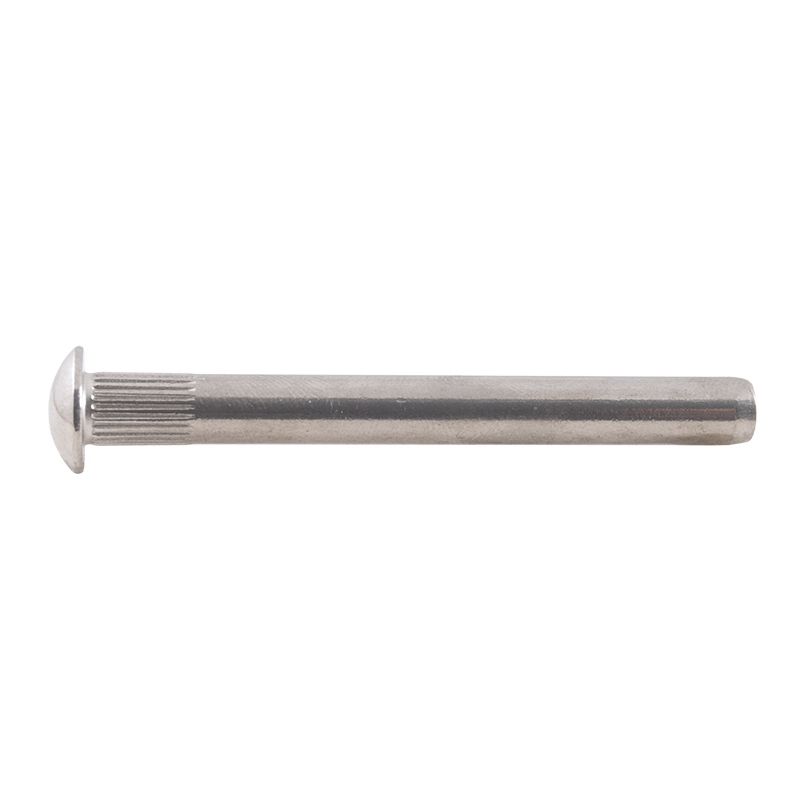

• Includes Mounting Hinge Pin
• For Driver's (Left) or Passenger's (Right) Side

• View more details

: In Stock

Qty:

EA (1)

WARNING: This product may contain chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm. Learn more.

Application and Fitment*

Make	Model	Body Style	Notes	Year
Ford	Car	All	-	1935-40
Ford	Truck	F1/F7	-	1948-50
Ford	Truck	F1/F7	**	1951-52
Mercury	Car	All	-	1939-40

**Note: For 1951-52, some minor grinding is necessary on the door hinge for the purpose of clearance and fit. Only remove enough material so that the mirror arm holes align with the holes for the door hinge pin.

*Chart is for reference only. Information is based on Ford Parts manuals and industry experts but does not guarantee part fitment.

Measurements and Materials

Mirror Head Diameter:	4 inches
Mirror Arm length:	8 1/2 inches
Hinge Inner Span:	2.265 inches
Hinge Inner Span:	2.698 inches
Pin Length:	2.642 inches
Pin Diameter:	.276 inches

**Note: For 1951-52, some minor grinding is necessary on the door hinge for the purpose of clearance and fit. Only remove enough material so that the mirror arm holes align with the holes for the door hinge pin.
