Complete Cab to Frame Mounting Pad Kit for a 1967-72 Ford Truck
Our Dennis Carpenters cab to frame pad kit includes all the parts you should need to mount the 1967-72 Ford truck cab back onto it's frame. Our precision tooling allows us to supply this mounting kit with each individual item manufactured to fit as was intended by Ford. After lasting this many decades the original mounting pads are probably cracked and splitting, while the special washers, bolts, sleeves, and nuts are probably ready to be replaced due to rust and corrosion.

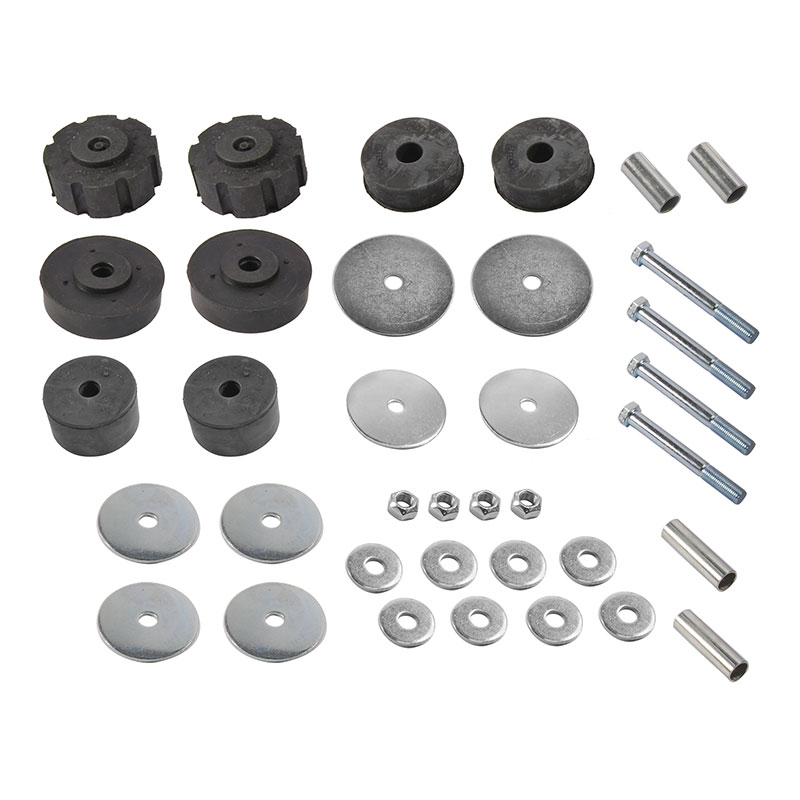

Our 36 piece kit features mounting pads that are made from high quality rubber and are molded to look, fit, and function as close to the originals as possible. The included hardware, such as the special washers, bolts, sleeves, and nuts allow for a time saving installation and are zinc plated to help them all resist the elements.

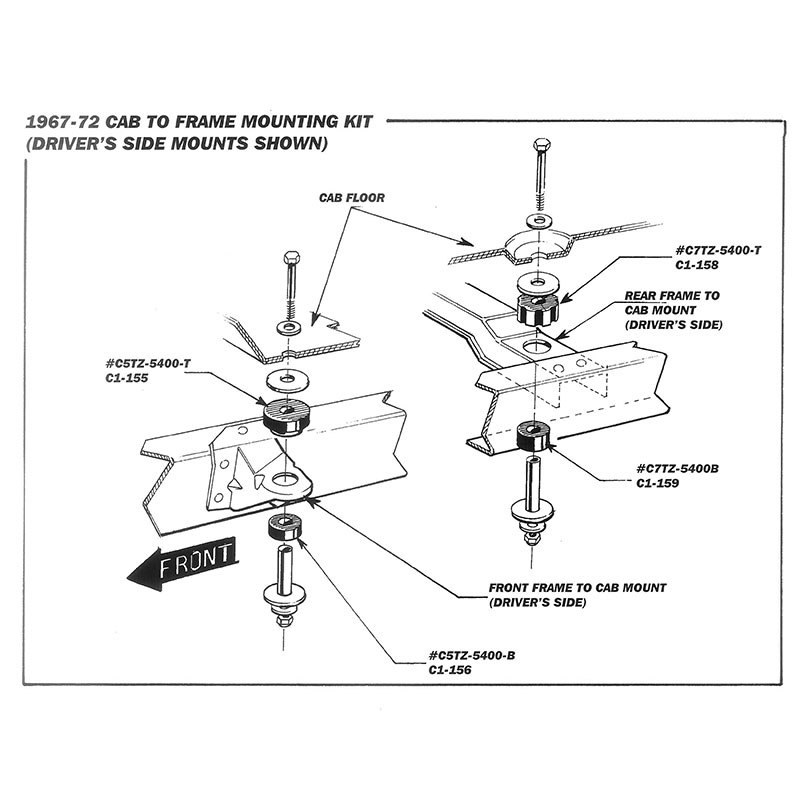

Kit Includes:Rubber Pads:
C5TZ-5400-B (C1-159) (x2):
Outer Diameter: 2 3⁄4"
Inner Diameter: 5⁄8"
Pad Thickness: 1 3⁄8" |
C5TZ-5400-T (C1-155) (x2):
Outer Diameter: 3 1⁄4"
Inner Diameter: 5⁄8"
Pad Thickness: 1" |
C7TZ-5400-B (C1-156) (x2):
Outer Diameter: 2 3⁄8"
Inner Diameter: 5⁄8"
Pad Thickness: 7⁄8" |
C5TZ-5400-T (C1-158) (x2):
Outer Diameter: 3 3⁄16"
Inner Diameter: 5⁄8"
Pad Thickness: 1 3⁄8" |
Hardware:
Cadmium Plated
Flat Washer (x2):
Outer Diameter: 3 1⁄8"
Inner Diameter: 7⁄16" |
Cadmium Plated
Flat Washer (x2):
Outer Diameter: 2 3⁄4"
Inner Diameter: 7⁄16" |
Cadmium Plated
Flat Washer (x4):
Outer Diameter: 2 1⁄2"
Inner Diameter: 7⁄16" |
Cadmium Plated
Flat Washer (x8):
Outer Diameter: 1 1⁄4"
Inner Diameter: 7⁄16" |
Cadmium Plated Bolts:
7⁄16" - 20 x 3 5⁄8" (x4)
7⁄16" - 20 x 4 7⁄8" (x2) |
Cadmium Plated Spacer (x2):
Outer Diameter: 5⁄8"
Inner Diameter: 7⁄16"
Overall Length: 2 3⁄16" |
Cadmium Plated Spacer (x2):
Outer Diameter: 5⁄8"
Inner Diameter: 7⁄16"
Overall Length: 1 3⁄8" |
Cadmium Plated
Self Locking Nut (x4):
Thread: 7⁄16" - 20 |
Dennis Carpenter Ford Restorations have been manufacturing and selling quality Ford parts for over 50 years!
If you want the best in Ford truck parts, let Dennis Carpenter's be your #1 source.
Order up your cab to frame mounting pad kit for your 1967, 1968, 1969, 1970, 1971, or 1972 Ford truck today.
