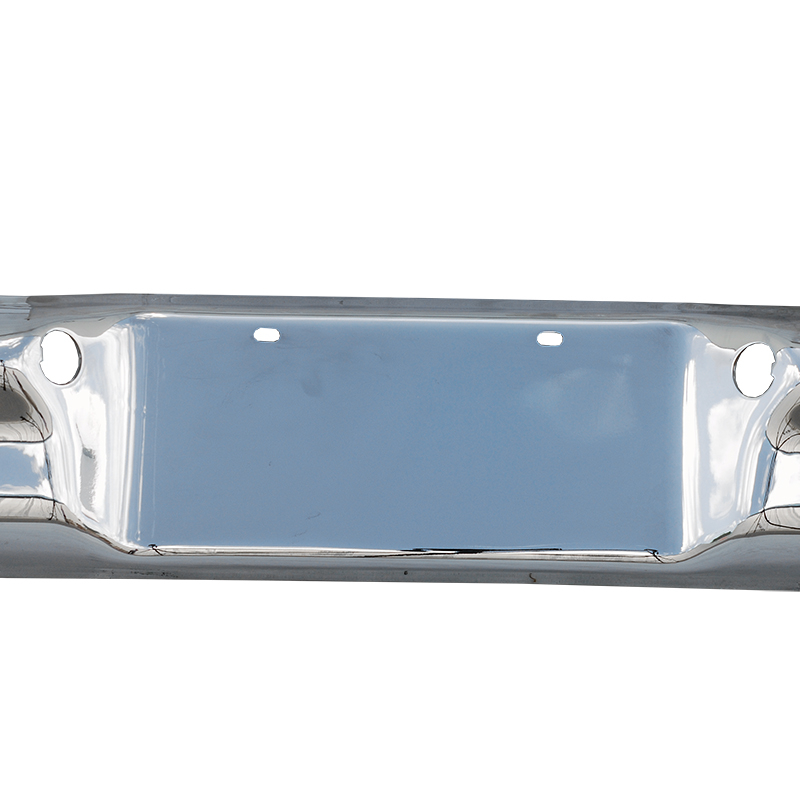

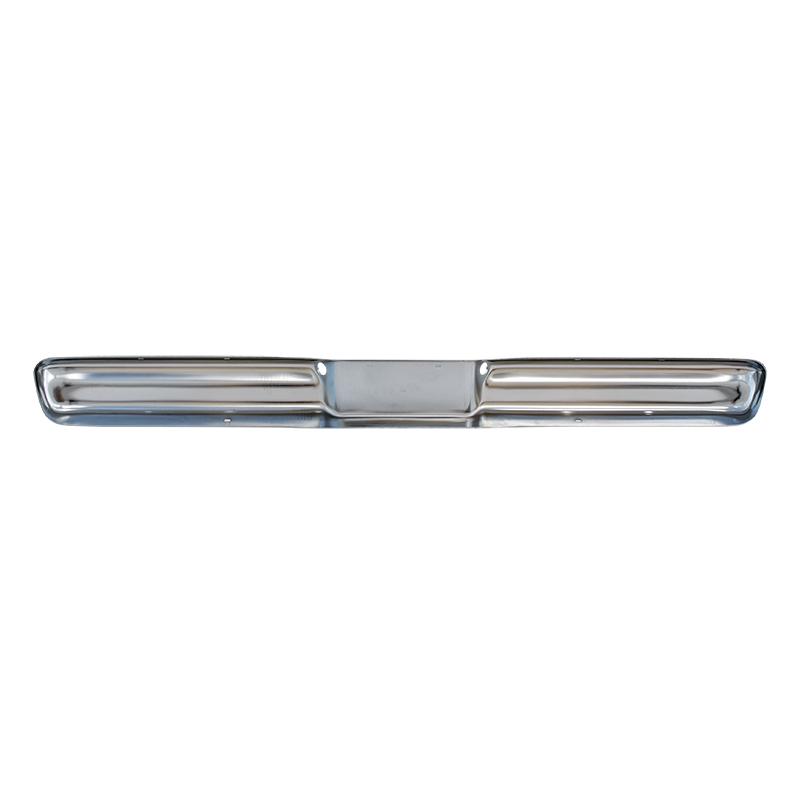

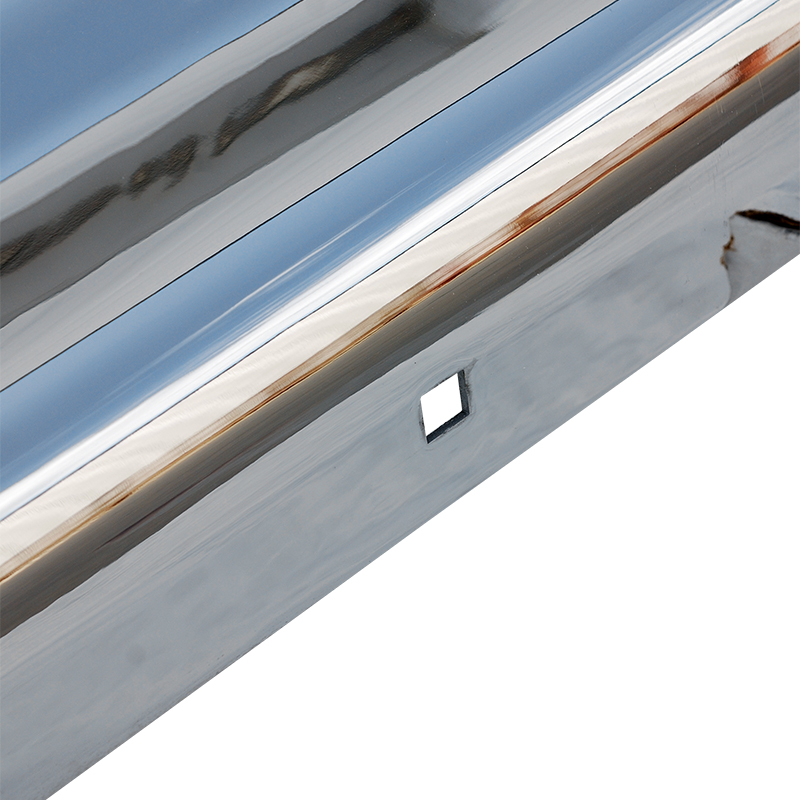

Features:
• Stamped Heavy 12gauge Steel
• Factory Quality Chrome Finish
• For Styleside Bed
• Fit and Functions as Original
Note: 1973-1979 Ford Trucks with the "Narrow" rear frame, the bumper bolt holes measure 33 1/2" on the center.
Tech Tip: 1973-79 Ford Trucks with the "Wider" fear frame, the bumper bolt holes measure 40", order: D3TZ-17906-A
Dimensions:
Overall Width: 75 15⁄16"
Bolt Holes:
Bottom Bolt Hole Width (C-C): 36 3⁄8"
Upper Top Outer Bolt Hole Width (C-C): 54 3⁄8"
Upper Top Inner Bolt Hole Width (C-C): 36 3⁄8"
Left Two Outer Bolt Hole Width (C-C): 8 15⁄16"
Right Two Outer Bolt Hole Width (C-C): 8 15⁄16"
Note: Bumper brackets are sold separately, order:
C4TZ-17787-SET
