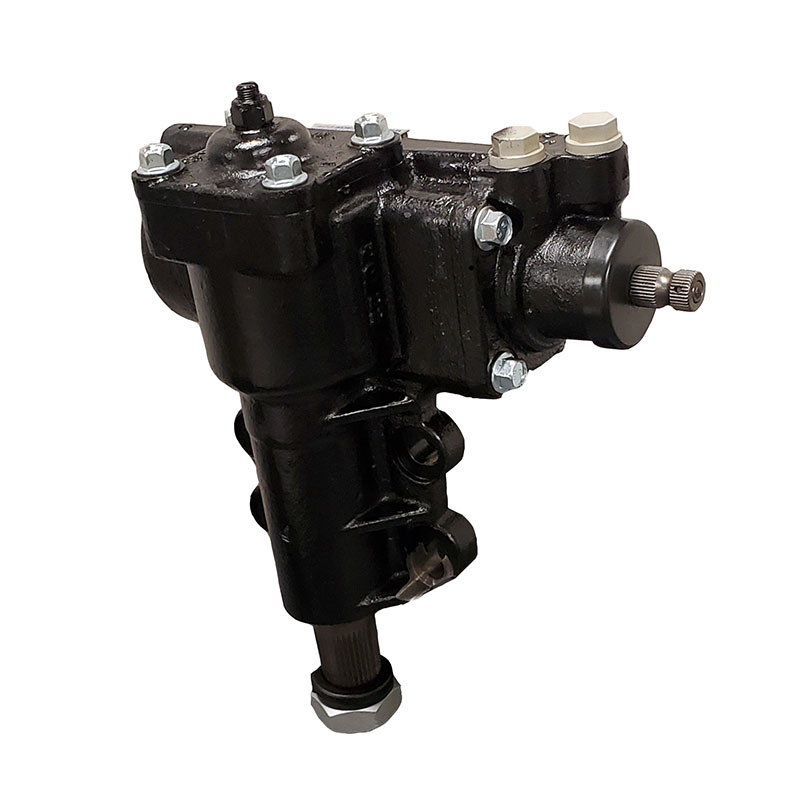

New modern integral power steering gearbox for your 1966-1977 Bronco.
True modern power steering feel, feedback and a quicker 14:1 ratio.
Bolts directly to the factory mounting location and fits the stock pitman arm.
A new universal joint will be required for connection to the stock column and a new hose kit for connection to the pump of your choice.
Specifications:
• Input Shaft: 11/16"-36 Spline
• Pitman Shaft: 1-1/4" Ford with 32 Splines and 4 Master Splines
• Pressure Port: 14mm X 1.5 Top Seal O-Ring
• Return Port: 14mm X 1.5 Top Seal O-Ring (Located closest to input shaft)
• Maximum Pressure: 1450 PSI Maximum Operating Pressure, 1100-1250 Optimal
• Flow Rate: 2.5-3.0 GPM Flow Rate Recommended
